EL-FuelCan 20

EL-FuelStation

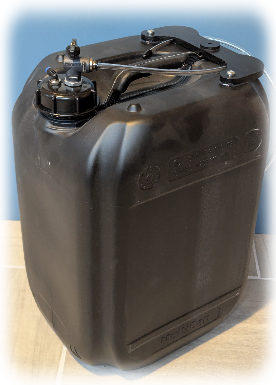

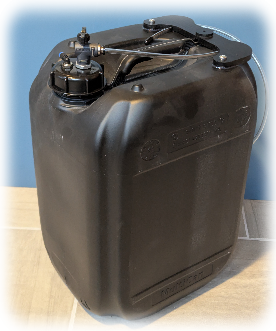

EL-FuelCan 20 L
The professional fuel can for clean, safe, and odor-free refueling
The EL-FuelCan 20 L is a diffusion-tight premium fuel can designed for demanding model pilots. It was developed for clean, bubble-free and low-odor refueling. Thanks to its barrier layer, the fuel stays fresh longer, even during extended storage periods.

The combination of separate internal fuel lines, dual filtration, and a barrier layer ensures a consistent, bubble-free fuel flow at all times.

✔ Fuel stays fresh longer
✔ No vapor loss & no moisture absorption
✔ Bubble-free fuel delivery up to 1 L/min
✔ Thoughtfully engineered in every detail


Key Features at a Glance
  • 20-liter UN-approved fuel can (Y1.4, HDPE, DIN 61)
  • Diffusion-tight design with barrier layer
  • Separate internal lines for fueling and defueling
  • Dual clunk filters for maximum flow rate
  • Bubble-free delivery up to 1 liter per minute
  • Overflow volume of 22.5 liters – ideal for oil mixing
  • Antistatic and odor-free
  • Integrated mount for the EL-FuelStation
  • Hose routing configurable for left- or right-handed users

Diffusion-Tight – No Odor, No Moisture, Fresher Fuel
The EL-FuelCan is equipped with an barrier layer, making it fully diffusion-tight.
This means:
  • No fuel vapors escape
  • No fuel odor – even when stored in a workshop, basement, or vehicle
  • No moisture ingress
  • Fuel stays significantly fresher for longer periods of time
👉 A clear advantage over conventional plastic fuel cans.

Important Notice
After refueling, always close the integrated shut-off valve to fully maintain the diffusion-tight properties of the EL-FuelCan.

Separate Fuel Lines – Clean Refueling Without Compromise

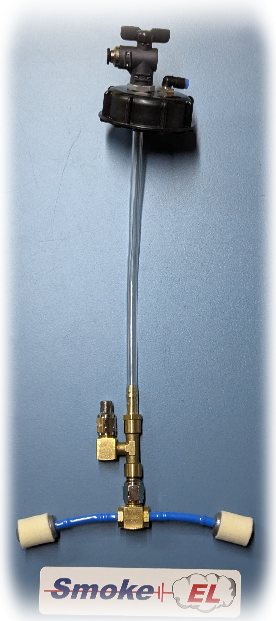

Inside the fuel can, two completely separate internal fuel paths are implemented:
  • Suction line for refueling
  • Return line for defueling
This design prevents fuel from being pumped back and forth between filters.
Contaminants are not returned to the suction line, keeping the filters clean and ensuring consistent fuel flow.
➡️ A key difference compared to conventional fuel can designs.
Maximum Flow Rate – Bubble-Free up to 1 L / Minute
To achieve maximum flow performance, the suction line is equipped with two clunk filters.

Benefits:
  • High flow rate
  • No air bubbles
  • Consistent delivery performance
  • Ideal for automatic fueling programs and Smart-Fill functions

This design becomes especially noticeable when fueling larger tanks or during frequent refueling operations.

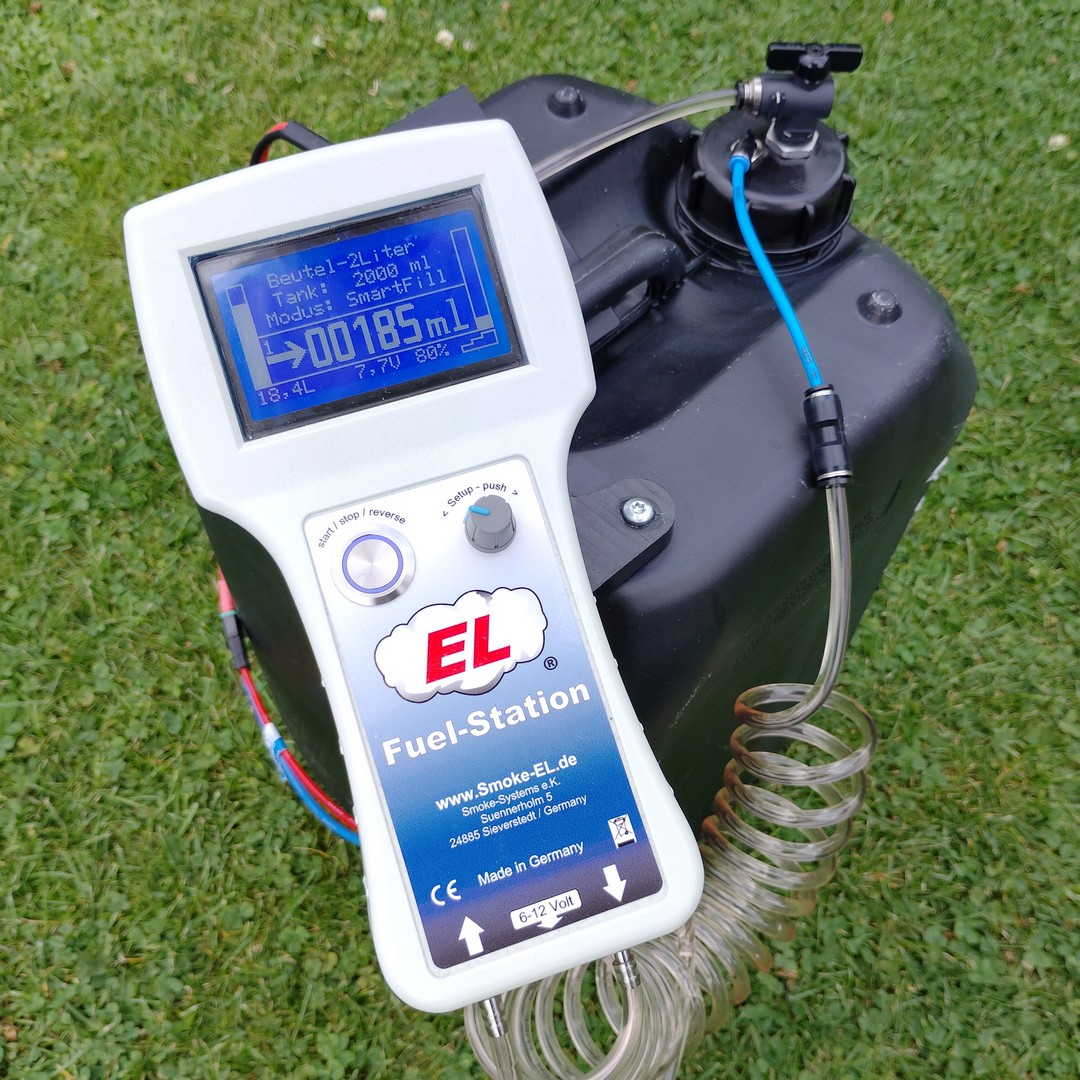

Perfectly Matched to the EL-FuelStation
The EL-FuelCan is the ideal companion for the EL-FuelStation and is designed as a fully integrated system:

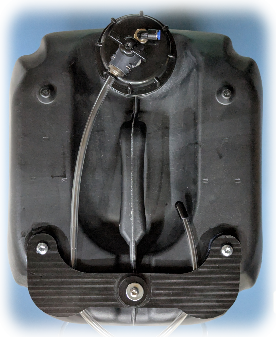

  • Integrated mounting bracket for the fueling station
  • Rotatable mounting design:
    • Ergonomic carrying position
    • Optimal fueling position with a clear view of the display
  • Two hose pass-through options:
    • Configurable for left- or right-handed users
Installation is quick and simple using the 4 mm mounting screw of the base plate.
When the screw is only lightly tightened, the fueling station remains freely rotatable.
Ideal for Fuel–Oil Mixtures
With an overflow capacity of 22.5 liters, the fuel can is perfectly suited for mixing turbine fuel:
  • 20 liters of fuel
  • 1 liter of oil
  • Sufficient reserve volume without overflow
Ideal for use at the flying field or in the workshop.
Technical Specifications
  • Capacity: 20 liters
  • Overflow capacity:
    approx. 22.5 liters
    (without fuel)
  • Material: HDPE with barrier layer
  • UN approval: Y1.4
  • Standard: DIN 61
  • Color: Black
  • Weight: approx. 1 kg
Connections & Fuel Lines
  • Suction line: 8 mm
    Equipped with two clunk filters
  • Vent line: 4 mm
  • Integrated shut-off valve
  • Hose routing configurable
    for left- or right-handed users
Conclusion

The EL-FuelCan 20 L is not an ordinary fuel can, but a professional fueling solution for demanding modelers and jet pilots.

For those who:
  • want clean refueling
  • value safety and odor-free operation
  • want to keep their fuel fresh for longer periods
  • require maximum flow performance
  • and want to get the most out of their EL-FuelStation
the EL-FuelCan 20 L is the perfect solution.

EL_FuelCan 20
Spareparts
20L canister for fuel
with holder for the EL-Fuel Station,
two filter pendulums and separate lines
for filling and draining.

Volume 20L
UN-Kanister
Y1.4 HDPE DIN 61
Color: black

259,00€
Add
EL-FuelStation Pro System
Spareparts
The Pro System is a complete, professional groundstation for all tank systems. It combines intelligent tank logic, clean overflow management, and a mechanically robust canister solution into a self-contained system.

Included:
- EL-FuelStation (including SmartFill mode)
- FuelSwitch overflow sensor
- MR30 patch cable
- Hose set
- EL-FuelCan 20 with integrated bracket
795,00€
Add
EL-FuelStation Basic
Spareparts
Filling station for all common fuels and all types of tanks (including bag tanks)
With SmartFill-technology

Technical data:
Weight..................... 550g
Dimensions........... 220 x 120 x 100 mm
Voltage.................... 6 – 12 volts
Current.....…………. max. 2A
Standby………….... <=15mA
Fuels…..…….........…. Kerosene, diesel, gasoline, methanol
Protection class... IP42
495,00€
Add
Hose set 6mm
Spareparts
Accessories for the EL-Fuel-Station

2m hose (PU, blue)
2m spiral hose (PU, clear)
6/4 reduction from 6mm to 4mm
25,00€
Add
